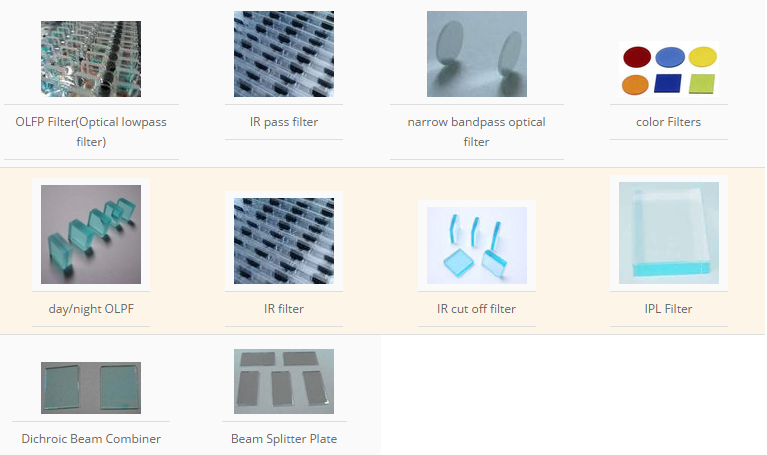

Filters are widely used on digital cameras, electronic microscope,Biomedical instrumentation,Fluorescence analyzer,IR detector,IPL machines, remote controller,our products include as below:

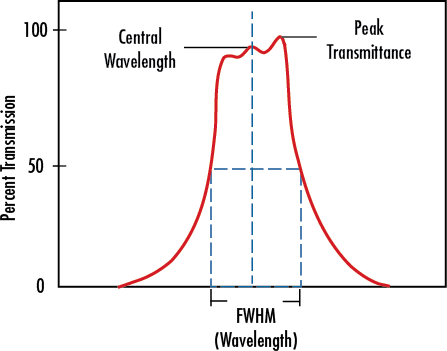

1.Bandpass Optical Filter(600,635,650,808,850,905,940nm) and IR bandpass Filter (850,940nm)
2.Biomedical Filter(450,470,510,530,590,620,630nm)

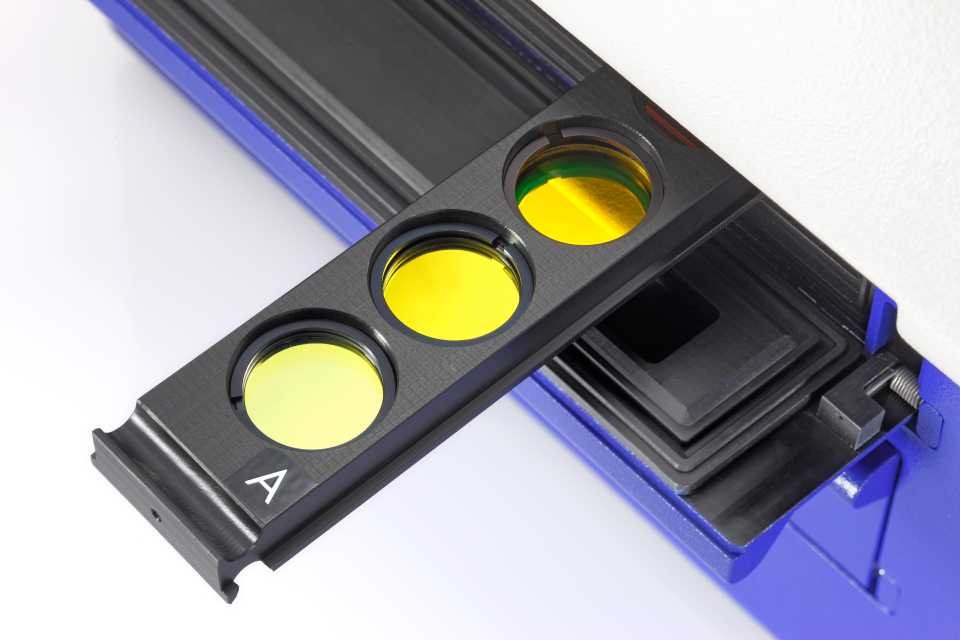

3.Fluorescence Filter(450,520,590,620,630nm)
4.IR Pass Filter(IR Filter,780,800,850,940nm)
5.Cast Plastic IR FilterIR Cutting Filter
6.IR Blocking Filter(640,650,680,690,730nm)
7.OLPF Filter (day type and D/N type,850nm,940nm).
8.IPL Filter and IPL light guide for IPL system
9.Reflective Mirror
10.Beam Splitter Plate(beam-splitter mirror) (visible wavelength and IR wavelength)
11.Reflective Dichroic Filter (RGB)

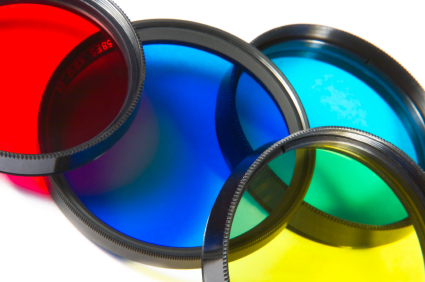

12.Color filter(Red,green,blue,RGB)
13.Neutral Density Filter(NDF,CVND,LVND)
14.UV Blocking Filter Filter(380,400,420,500)
15.UV & IR Cutting Filter
16.UV Pass Filter
17.UV Bandpass Filter
18.Hot mirror and cold mirror
Infrared Filter, Optical Filter, Infrared Glass, Optical Glass, IR Filter, Camera Filter
Various Size Available : 25 mm Dia , 50 mm Dia, 25mm X 25mm, 50mm X 50mm
Model No. | Description | Thickness |
IR-Pass-600T1 | T=50%@600±10nm,Tavg>85%@630-1100nm | 1.0mm |
IR-Pass-610T2 | T=50%@610±10nm,Tavg>85%@640-1100nm | 2.0mm |
IR-Pass-650T2 | T=50%@640±10nm,Tavg>85%@680-1100nm | 2.0mm |
IR-Pass-670T2.5 | T=50%@670±10nm,Tavg>85%@700-1100nm | 2.5mm |
IR-Pass-700T2 | T=50%@700±10nm,Tavg>80%@740-1100nm | 2.0mm |
IR-Pass-720T2 | T=50%@720±10nm,Tavg>80%@750-1100nm | 2.0mm |
IR-Pass-760T2 | T=50%@760±10nm,Tavg>80%@790-1100nm | 2.0mm |
IR-Pass-780T2 | T=50%@780±10nm,Tavg>85%@810-1100nm | 2.0mm |
IR-Pass-800T2 | T=50%@800±10nm,Tavg>80%@830-1100nm | 2.0mm |
IR-Pass-830T2 | T=50%@830±10nm,Tavg>85%@860-1100nm | 2.0mm |
IR-Pass-850T2 | T=50%@850±10nm,Tavg>85%@880-1100nm | 2.0mm |
IR-Pass-850T3 | T=50%@850±10nm,Tavg>85%@880-1100nm | 3.0mm |
IR-Pass-800R | M25,M27,M28,M30,black anodization treatment | 7.0mm |
IR CUT FILTER is used to protect CCD/CMOS image sensor organ from attainted by the bad rays. For example, when our eyes do not wear the protected Oculars, I believe the flavor that clap eyes on sun’s rays directly can be realized by everybody. But the reaction of CCD/CMOS image sensor organ has more intensity than people, no more than it cannot radiate pain nothing more.
Model No. | Description |
IR Cut 650 Filter | T=50%@650±10nm |
IR Cut 730 Filter | T=50%@730±10nm |
IR Cut 850nm Filter | T=50%@650±10nm,CWL:850nm |
IR Cut 940nm Filter | T=50%@650±10nm,CWL:940nm |
UV Pass Filter
Part No | Description | Thickness |
UV-Pass-220T2 | T=50%@220±10nm,T>85%@300~1100nm | 2.0mm |
UV-Pass-240T2 | T=50%@240±10nm,T>85%@330~1100nm | 2.0mm |
UV-Pass-260T2 | T=50%@ 260±10nm,T>85%@340~1100nm | 2.0mm |
UV-Pass-280T2 | T=50%@ 280±10nm,T>85%@350~1100nm | 2.0mm |
UV-Pass-300T2 | T=50%@ 300±10nm,T>85%@370~1100nm | 2.0mm |
UV-Pass-320T2 | T=50%@ 320±10nm,T>80% 400~1100nm | 2.0mm |
UV-Pass-340T2 | T=50%@ 340±10nm,T>85%@420~1100nm | 2.0mm |
UV-Pass-360T2 | T=50%@ 360±10nm,T>85%@440~1100nm | 2.0mm |
UV-Pass-380T2 | T=50%@ 380±10nm,T>85%@500~1100nm | 2.0mm |
UV/IR Cut Filter
UV Cut Filters are long pass filters that block the UV wavelength range and transmit the visible. In machine vision applications they are used in front of a lens on a CCD or CMOS camera to protect the sensor from UV light, in absence of internal protection in the camera.
UV-IR Filter is a filter that can block UV and IR wavelength light and pass visible light only.It has a good usage of blocking UV and IR energy to prevent the sensor machine systems and components from damages. It allows good transmission of visible light without interfering the illumination of the light source. It is quite applicable to the digital projector system.
Part No | Description | Thickness |
UV/IR Cut Filter | T=400-700 nm | 1.1mm |
Neutral Density Filter
Neutral Density Filter reduces the brightness of an image without changing the color of the scene. It allows all wavelengths to pass through equally.
Part No | Thickness | Transmission | Tolerance(400-700nm) |
ND-Filter-02 | 2mm | 2.00% | 1.0~4.0% |
ND-Filter-05 | 2mm | 5.00% | 1.0~9.0% |
ND-Filter-10 | 2mm | 10.00% | 6.0~15.0% |
ND-Filter-25 | 2mm | 25.00% | 18.0~32.0% |
ND-Filter-30 | 2mm | 30.00% | 23.0~37.0% |
ND-Filter-50 | 2mm | 50.00% | 41.0~59.0% |
ND-Filter-65 | 2mm | 65.00% | 58.0~72.0% |
ND-Filter-70 | 2mm | 70.00% | 63.0~77.0% |
ND-Filter-70R | 2mm | M25,M27,M28,M30 ring(photograph) |
Dichroic Filter
Reflective dichroic color filter( RGB beam combiners) reflects red,green,blue wavelength while transmitting green,red,yellow.It’s good ideal for color separation applications,such as stage lighting,laser pens.Our dichroic color filters are designed to be used at 45° angle of incidence.
Model No | Type(R/T) | AOI | Property |
Dichoric-Filter-650R532T | Trans green reflect red | 45° | Trans green reflect red Dichroic Filter |
Dichoric-Filter-532R650T | Trans red reflect green | 45° | Trans red reflect green dichroic filter |
Dichoric-Filter-470R580T | Trans yellow reflect blue | 45° | Trans yellow reflect blue dichroic filter |
Blue(473):400~475; Green(532):495~570; Yellow:525~660; Red(650):620~660
Polarizer
Polarizer,also called polarizing filter,abbreviation of PL.It includes Linear Polarizer and Circular Polarizer.An absorptive polarizer filters out the unwanted beams by absorbing them, and leaves behind just the desirable ones. The most common type of absorptive filter is a wire grid, which allows only a single type of beam to pass through.
Polarizers are most useful for increasing general outdoor color saturation and contrast.
Model No | Characteristic | Thickness | Property |
Line Polarizer | Transmission:41.5%,Extinction:99.8 % | about 2.5mm | PL |
Circular Polarizer | Transmission:30.0%,Extinction:99.9 % | about 2.5mm | CPL |
With ring available,size : M25,M27,M28,M30,M37,M43, M46,M49,M52,M55 ,M58,
black anodization treatment
